Outdoor Waterproof LED Panel

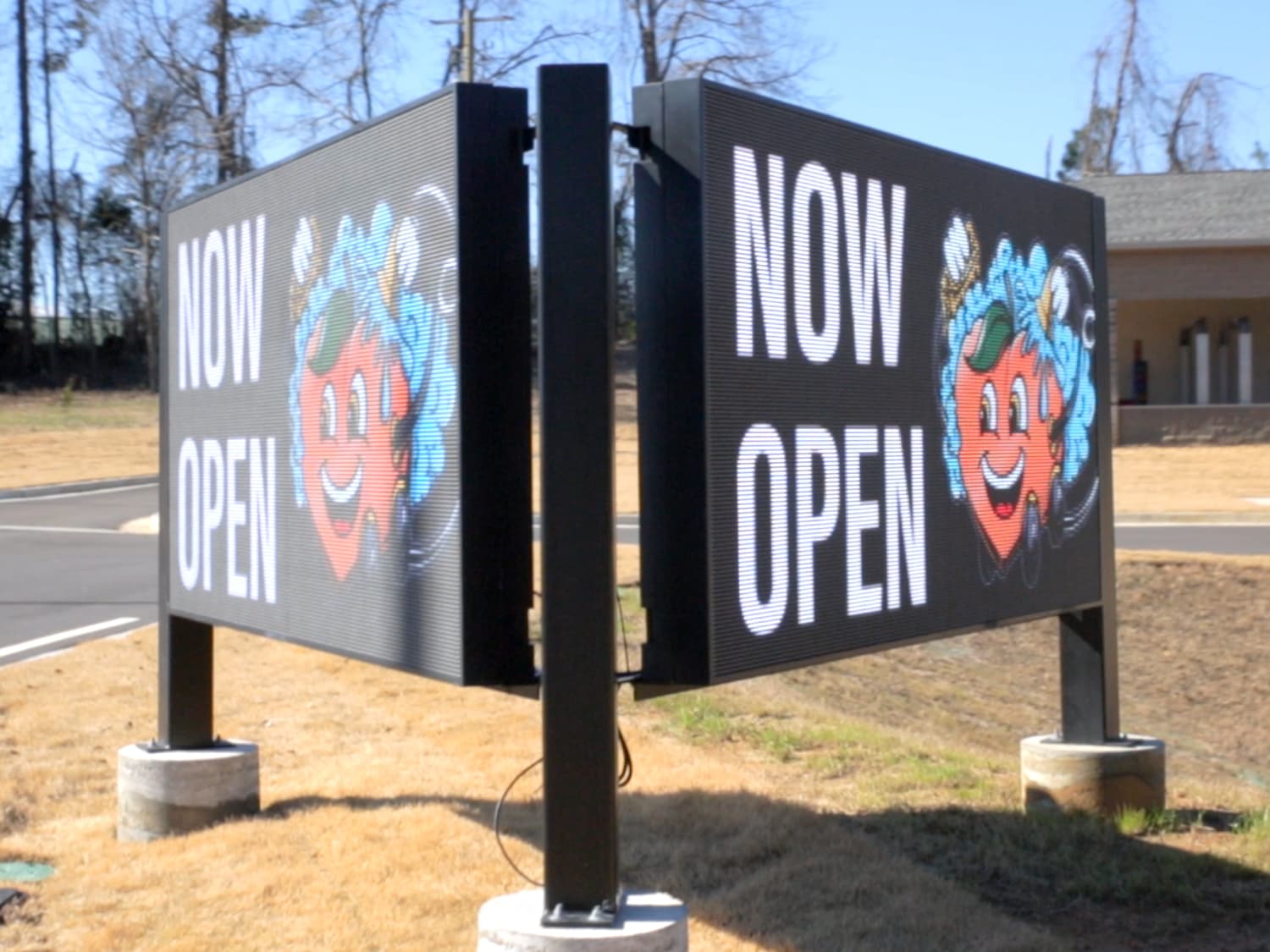

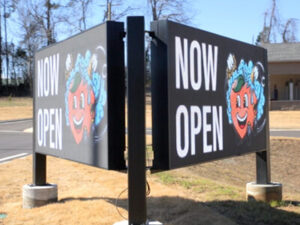

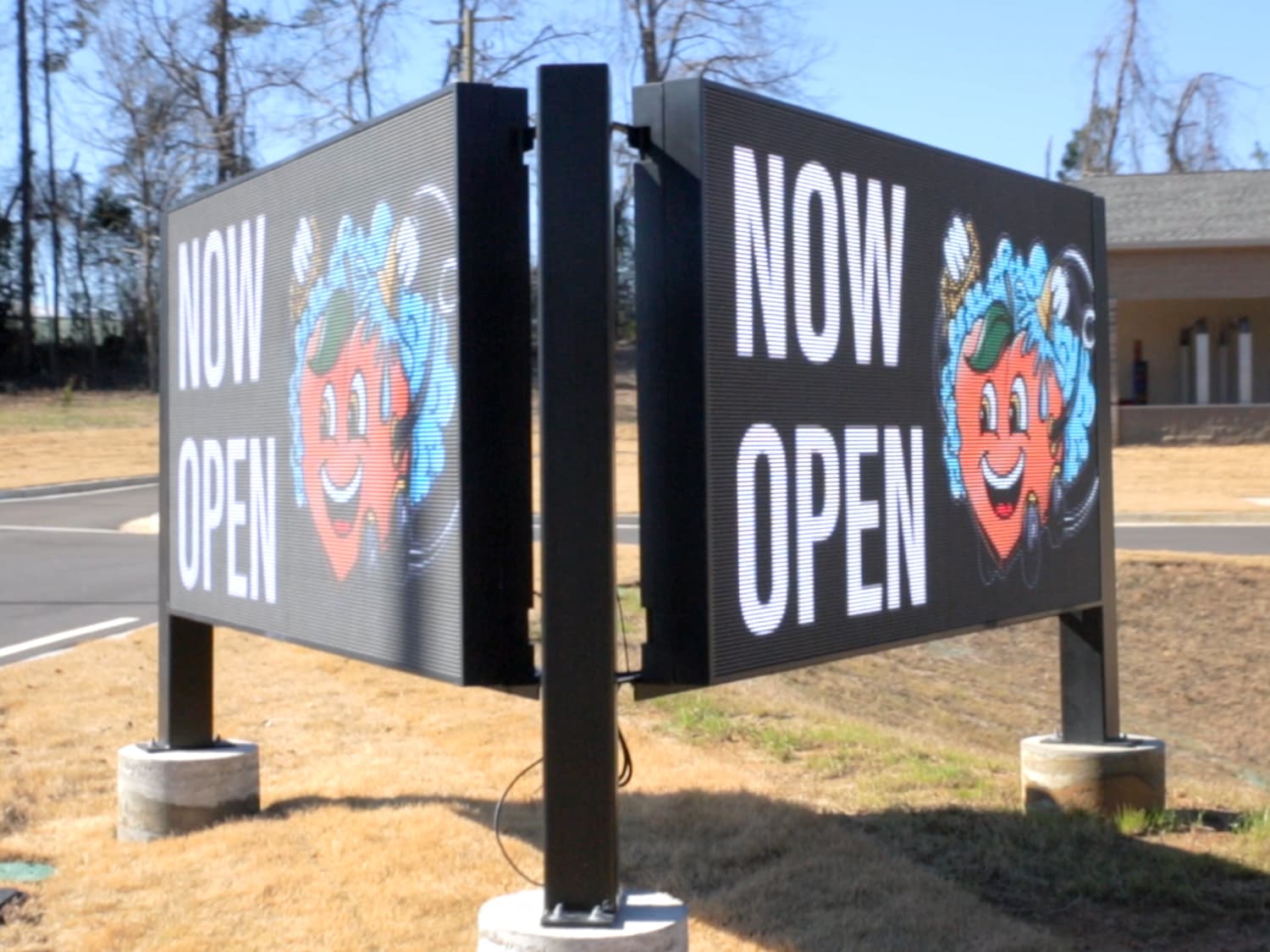

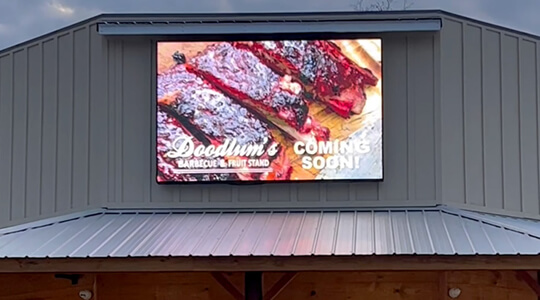

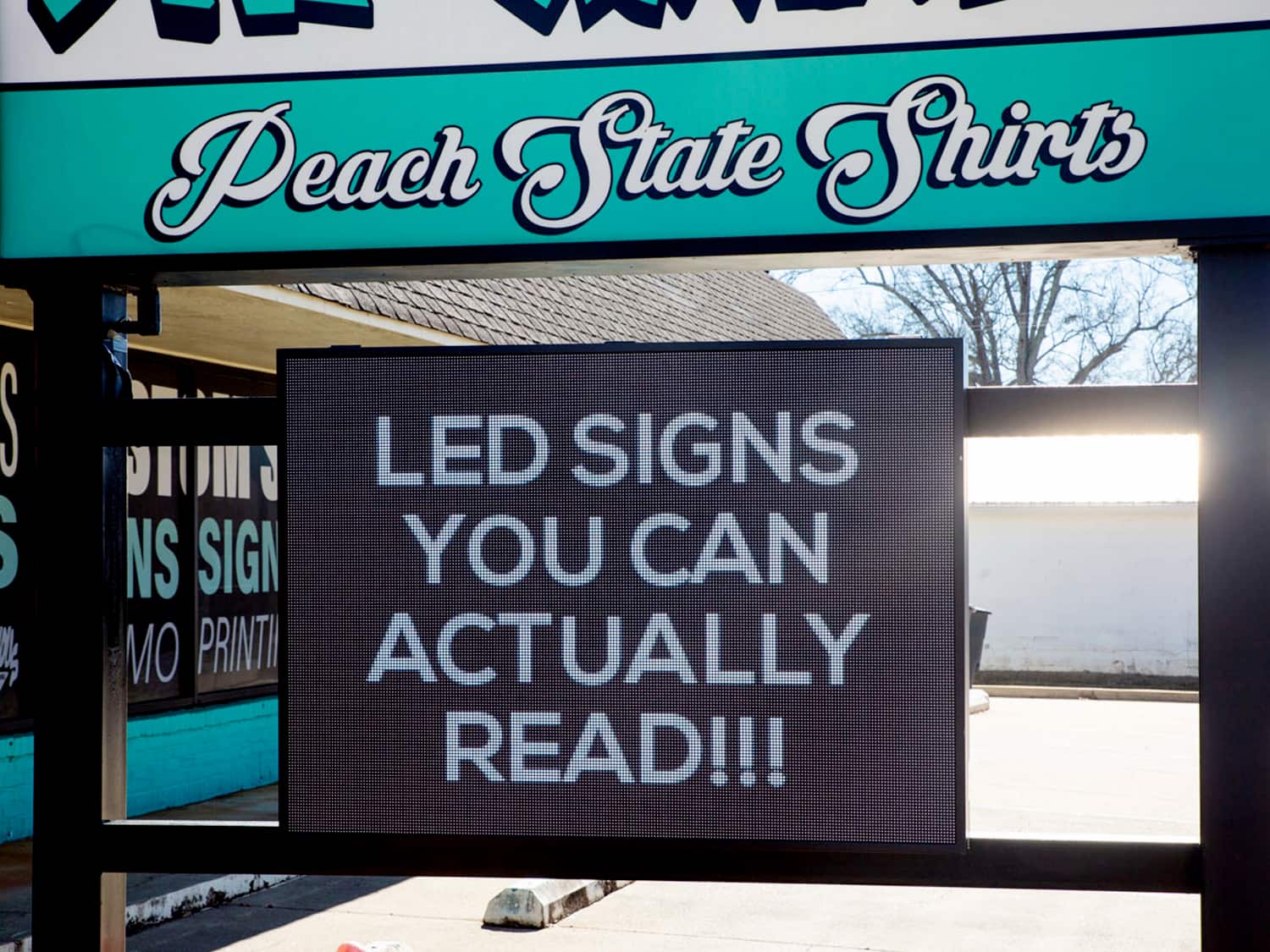

Our flagship LED sign, Outdoor Waterproof LED Panel. They can either be mouted on walls, poles or on a roof. Designed to withstand extreme weather conditions such as sunlight UV rays, high and low temperatures, vibrations and wet weather.
What makes these the best choice:
• Corrosion Resistant
• Anti-moisture
• Water Proof
• Anti-reserve Bias
• Long Lifespan
• Light weight
• Slim Depth
• Easy Installation
Available in:
• P3 LED
• P6 LED
• P10 LED
3 Types, 3 Purposes
P3 LED
HIGHEST RESOLUTION – This is our highest resolution LED panel, with a pixel pitch of 3mm, viewable at 9’ distance. We only recommend this resolution for smaller screens where smaller text is needed. Example, like an outdoor menu. Contact us for an exact quotation.
P6 LED
RECOMMENDED – This is our flagship recommended size which is the most common version we sell. This LED module has a pixel pitch of 6mm, which means the individual pixels are 6mm apart, making this viewable at a 19’ distance. This is the perfect pixel count for signs 4.5’ wide and over, allowing beautiful images and videos to view similar to standard TV from the proper distance. Contact us for an exact quotation.
P10 LED
BEST FOR LARGER SIGNS OVER 12’ WIDE – This is a lower resolution LED panel than the P6, and not recommended for small signage, with a pixel pitch of 10mm. This is viewable at 32’ and recommended for larger signs or signs that are not close to the road. Going to P10 will save you some money, but for the cost difference, we feel you would still be much happier with a P6. The resolution difference is noticeable. Contact us for an exact quotation.
Technical Spec
| LED Sign Type | P3 LED | P6 LED | P10 LED |
|---|---|---|---|
| Pixel Pitch (mm) | P3.076 | P6.67 | PlO |
| LED | SMD1415 | SMD3535 | SMD3535 |
| Pixel Density (d0Vm2) | 105688 | 22477 | 10000 |
| Module Size (mm) | 320×160 | 320×160 | 320×160 |
| Module Resolution | 104×52 | 48×24 | 32×16 |
| Cabinet Size (mm) | 960×960 | 960×960 | 960×960 |
| Cabinet Materials | Metal | Metal | Metal |
| Scanning | 1/13 | 1/6 | 1/2 |
| Cabinet Flatness (mm) | <0.5 | <0.5 | <0.5 |
| Grey Rating | 14 bits | 14 bits | 14 bits |
| Application Environment | Outdoor | Outdoor | Outdoor |
| Protection Level | IP65 | IP65 | IP65 |

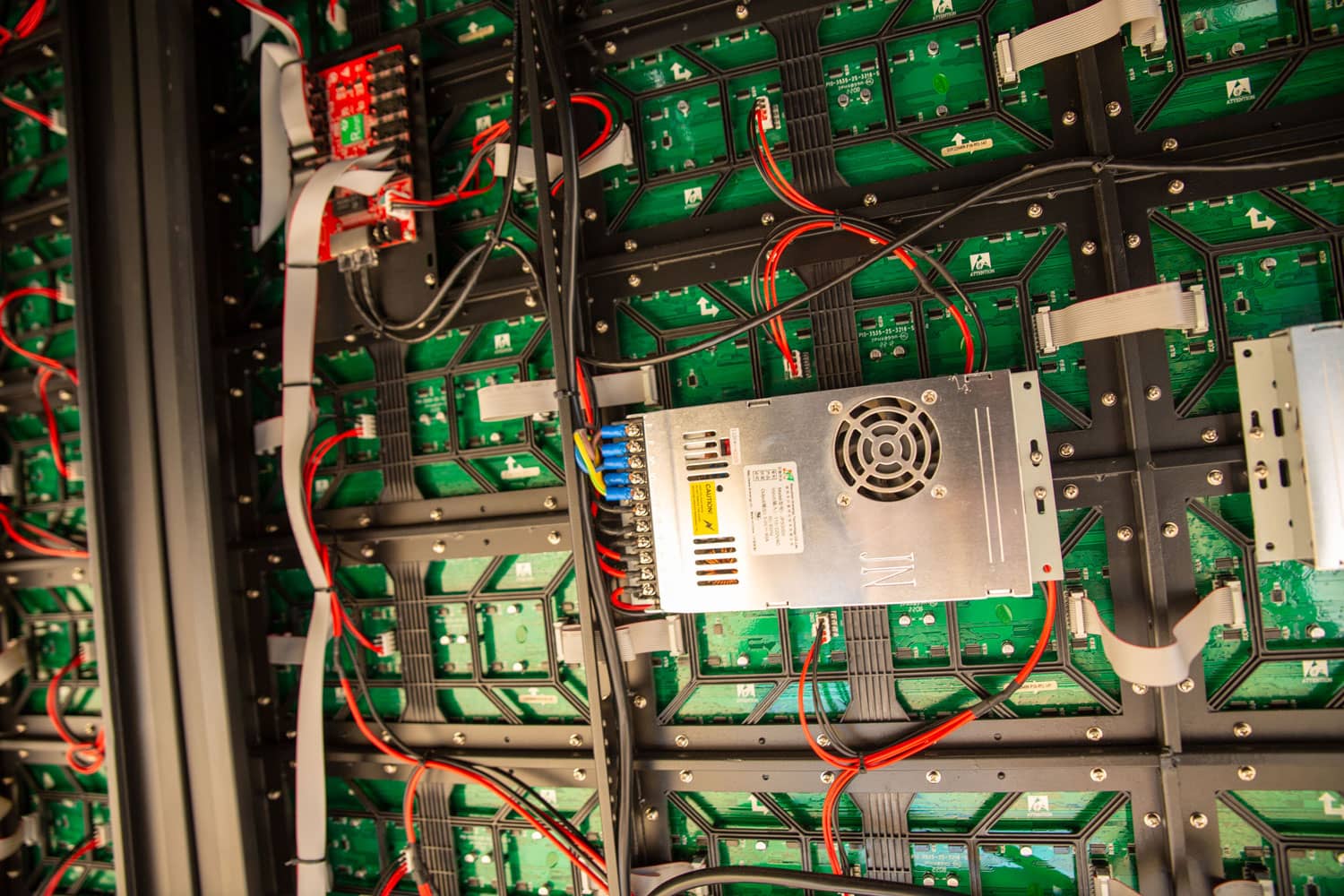

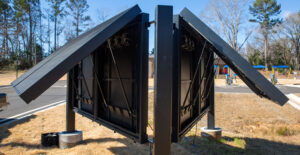

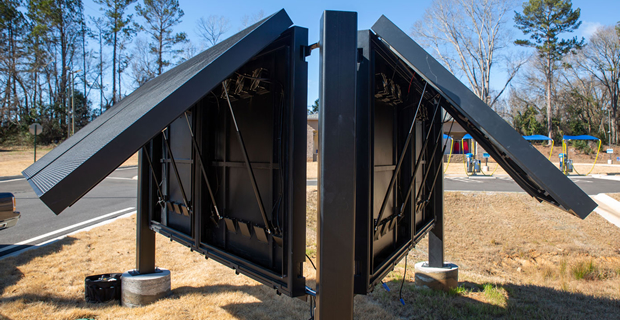

| Maintain Service | Rear Access | Rear Access | Rear Access |
| Brightness | 5000- 5800 nits | 5800-6500 nits | 5800-6500 nits |
| Frame Frequency | 50/60Hz | 50/60Hz | 50/60Hz |
| Refresh Rate | 1920Hz-3840Hz | 1920Hz-3840Hz | 1920Hz-3840Hz |
| Power Consumption | M.A.X: 900WatVcabinet Average: 300WatVcabinet | ||
